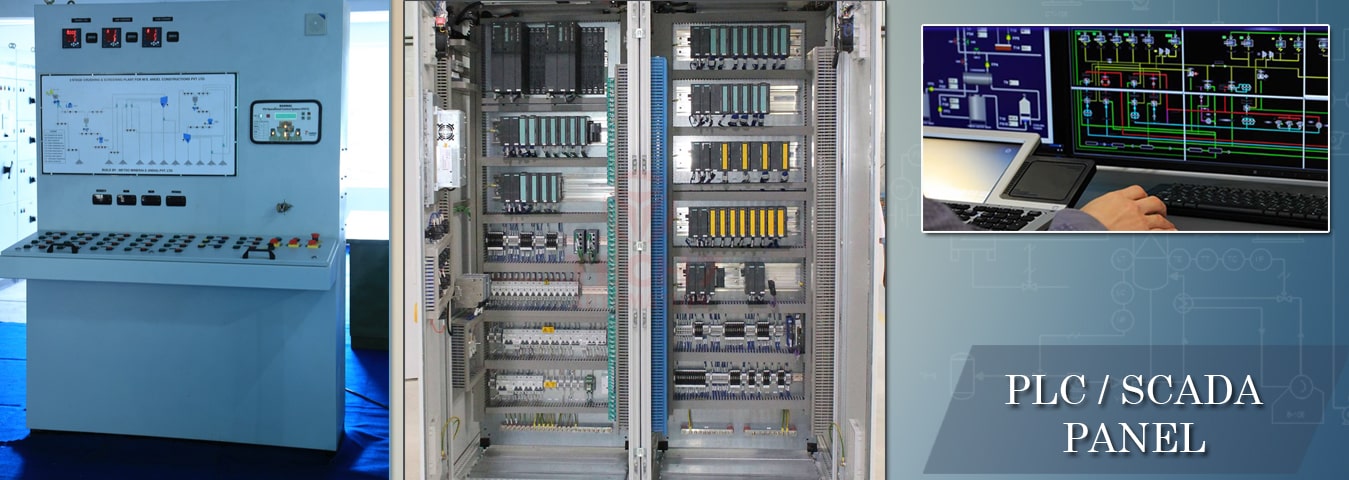

A Programmable Logic Controller (PLC) is a specialized computer designed for industrial automation and control. PLCs are used to manage and control various processes, including manufacturing, assembly lines, and material handling systems.

Considering a water treatment plant environment, PLCs control various sensors like pumps, valves, and actuators which are the main driving factors in the process. They are designed to be robust, reliable, and capable of operating in harsh industrial environments. The development of PLCs dates back to the late 1960s when they were introduced as a replacement for hard-wired relay control systems, offering greater flexibility and ease of reprogramming.

PLC Components

A typical PLC system consists of several essential components that work together to execute control tasks. These components include:

1. Processor (CPU): The processor is the brain of the PLC, responsible for executing the control program stored in its memory. It processes input data, performs calculations, and generates output signals based on the logic defined in the program. Considering the scenario of an HVAC heating system, the CPU will consider factors like outside temperature, room temperature, day of the month, time required to heat the room; before performing the task.
2. Memory: PLCs have memory to store the control program, system configuration, and data. There are different types of memory, such as read-only memory (ROM) for storing the operating system and firmware, and random-access memory (RAM) for storing the control program and temporary data.
3. Input/Output (I/O) Modules: I/O modules are responsible for interfacing the PLC with external devices, such as sensors, actuators, and other control equipment. Input modules collect data from sensors and convert it into a format that the PLC can process, while output modules convert the PLC's control signals into a format that can be used to control actuators and other devices. In an HVAC heating system, the input port will convert the analog values received from the temperature sensors into the format that PLC can understand. Based on the program stored in the memory, the output will adjust the heating.
4. Power Supply: The power supply provides the necessary electrical power for the PLC and its components. It converts the incoming AC voltage to the required DC voltage levels for the system.
5. Communication Interfaces: PLCs often have communication interfaces to connect with other devices, such as human-machine interfaces (HMIs), other PLCs, or remote I/O modules. These interfaces can use various communication protocols, such as Ethernet, Modbus, or Profibus, to exchange data and control information.
6. Programming Device: A programming device, such as a personal computer or a dedicated handheld programmer, is used to create, modify, and troubleshoot the control program for the PLC. Programming software is used to develop the control logic, which is then downloaded to the PLC's memory.

PLC Features

Let’s explore the roles of a PLC in an HVAC heating system used for ensuring optimal room temperatures in office rooms. This will provide an in-depth understanding of the functioning of PLC operation in day-to-day applications that we participate in.

1. Precise Temperature Control: PLCs can precisely monitor and control temperature levels in the heating system. By using analog input modules, the PLC can continuously measure the temperature (using thermistors) and adjust heating elements or valves to maintain the desired setpoint. This allows for accurate and stable temperature regulation, ensuring optimal comfort levels and energy efficiency.
2. Time-Based Scheduling: PLCs support time-based scheduling, allowing the HVAC system to adjust heating operations automatically based on predefined time periods. For example, the system can lower the heating output during non-peak hours or weekends to conserve energy, and then increase it before occupants arrive for a comfortable environment. PLC can calculate the environment temperature to calculate the time it would take to keep the office rooms ready with the optimal temperature before commencing timings.
3. Energy Optimization: PLCs can optimize energy consumption in the HVAC heating system. By using algorithms and feedback loops (PID), the PLC can dynamically adjust heating output based on the difference between the actual and desired temperatures. This control strategy ensures that the system only consumes the required amount of energy to maintain the desired comfort level, leading to energy savings and reduced operating costs.
4. Remote Monitoring and Control: PLCs often feature remote access capabilities, allowing operators or facility managers to monitor and control the heating system remotely. Through a secure network connection, authorized personnel can make adjustments, set schedules, or diagnose issues from anywhere, streamlining maintenance and reducing response times to critical situations. This often refers to the integration of Supervisory Control and Data Acquisition (SCADA) systems, a powerful software cum hardware system, as will be discussed in the article below.
5. Fault Detection and Diagnostics: PLCs come equipped with various diagnostic tools that can detect faults in the heating system. This helps in identifying issues such as sensor malfunctions, valve failures, or abnormal temperature readings. The PLC can trigger alarms or notifications to alert maintenance personnel, enabling them to promptly address potential problems and prevent downtime.
6. Integration with Building Automation Systems: PLCs can be integrated into larger building automation systems, enabling seamless coordination with other building subsystems like ventilation, lighting, and security. This integration facilitates overall energy management and ensures a holistic approach to optimizing the building's performance and comfort.

PLC Communication Protocols

Communication protocols are essential for PLC systems to exchange data and control information with other devices, such as sensors, actuators, human-machine interfaces (HMIs), and other PLCs. These protocols define the rules and formats for data transmission, ensuring reliable and efficient communication between devices. Some of the common communication protocols used in PLC systems include:

1. Modbus: Modbus is a widely used, open communication protocol that allows PLCs to communicate with various devices over serial or Ethernet connections. It is a simple, easy-to-implement protocol that supports both read and write operations for digital and analog signals. Modbus is often used in applications where a PLC needs to communicate with multiple devices, such as sensors, actuators, or other controllers.
2. Profibus: Profibus (Process Field Bus) is a high-speed, deterministic communication protocol designed for industrial automation systems. It supports both cyclic and acyclic data exchange, allowing for real-time communication between PLCs and field devices. Profibus is often used in applications that require high-speed data exchange and precise synchronization between devices, such as motion control or robotics.
3. Ethernet/IP: Ethernet/IP (Industrial Protocol) is an open, Ethernet-based communication protocol that extends the standard TCP/IP protocol suite for industrial automation applications. It supports both explicit messaging for non-time-critical data exchange and implicit messaging for real-time, time-critical communication. Ethernet/IP is often used in applications that require high-speed communication and seamless integration with enterprise networks.
4. DeviceNet: DeviceNet is a device-level communication protocol based on the Controller Area Network (CAN) technology. It is designed for low-level communication between PLCs and field devices, such as sensors, actuators, and motor drives. DeviceNet supports both peer-to-peer and master-slave communication, allowing for flexible network configurations and efficient data exchange.
5. PROFINET: PROFINET is an Ethernet-based communication protocol developed by Siemens for industrial automation systems. It supports real-time communication, deterministic data exchange, and seamless integration with IT systems. PROFINET is often used in applications that require high-speed communication, advanced diagnostics, and remote configuration of devices.

Each communication protocol has its advantages and disadvantages, and the choice of protocol depends on the specific requirements of the application, such as data transmission speed, network topology, and device compatibility. In many cases, a combination of protocols can be used within a single PLC system to meet the communication needs of different devices and processes.

Advantages

While the various advantages of PLC have been observed, let’s summarize them below:

1. Fault Tolerance: PLCs store control software locally, allowing them to function autonomously even during communication failures or network disruptions. This ensures uninterrupted operation and reduces downtime in critical industrial processes, as compared to traditional relays.
2. Enhanced Flexibility: PLCs replace the need for extensive physical wiring between input and output devices, simplifying installation and reducing the complexity of industrial control systems. This flexibility enables quick and cost-effective reconfiguration of control logic when process requirements change.
3. Space Efficiency and Versatility: PLCs are compact and take up less space compared to traditional relay banks, while still offering the option to incorporate relays if specific applications demand their use. This versatility allows engineers to choose the most suitable components for each aspect of the control system.
4. Reprogrammable and Adaptable: PLCs are highly reprogrammable, enabling engineers to modify control logic easily. This adaptability allows for seamless adjustments in processes, new feature implementations, or the incorporation of safety protocols without the need for extensive hardware changes.

Further information on PLC, including the programming languages used in PLC and its further applications can be read from the link below

SCADA (Supervisory Control and Data Acquisition)

SCADA (Supervisory Control and Data Acquisition) is a combination of software and hardware components that work together to monitor and control industrial processes. They are used to monitor and control large-scale industrial processes, such as power generation, water treatment, and manufacturing. By this, SCADA provides a high level of supervision, data acquisition, and analysis, enabling operators to monitor the status of various devices and processes, detect anomalies, and make informed decisions. SCADA systems have evolved over the years, with modern systems incorporating advanced features such as remote access, data analytics, and integration with enterprise systems.

SCADA Components

A typical SCADA system consists of several key components that work together to collect, process, and display data from various devices and processes. These components include:

1. Sensors and Actuators: Sensors are devices that collect real-time data from the physical environment. They measure parameters such as temperature, pressure, level, and more. Actuators, on the other hand, are devices responsible for initiating actions based on control commands. Sensors provide essential input data to SCADA for monitoring, while actuators execute control actions to influence processes.
2. SCADA Field Controllers: Remote Terminal Units (RTUs) and Programmable Logic Controllers (PLCs) are field devices that collect data from sensors and control actuators in the industrial process. They communicate with the SCADA system to transmit data and receive control commands.
3. SCADA Master Station (or SCADA Server): The SCADA Master Station is the central component of the SCADA system, responsible for data acquisition, processing, and control. It communicates with RTUs or PLCs to collect data, processes the data to generate meaningful information, and sends control commands to the field devices.
4. Human-Machine Interface (HMI): The HMI is the graphical interface that allows operators to interact with the SCADA system. It displays real-time data, historical trends, and alarms, enabling operators to monitor the status of the industrial process and make informed decisions. HMIs can be standalone devices or software applications running on computer systems or mobile devices.
5. Communication Network: The communication network connects the SCADA Master Station with the field devices (RTUs or PLCs) and the HMI. It can be based on various communication technologies, such as wired or wireless networks, and use different communication protocols, such as Modbus, Profibus, or Ethernet/IP. Communication protocols such as Modbus, DNP3, and OPC facilitate seamless data exchange.
6. Historian (or Data Storage): The historian is a database that stores historical data collected by the SCADA system. It allows operators and engineers to analyze trends, perform diagnostics, and generate reports for decision-making and process optimization.
7. Alarm and Event Management System: The alarm and event management system is responsible for detecting and managing alarms and events in the SCADA system. It monitors the incoming data for anomalies, generates alarms when predefined conditions are met, and logs events for further analysis and troubleshooting.

These components work together to provide a comprehensive view of the industrial process, enabling operators to monitor and control the process efficiently and effectively.

SCADA Features

While SCADA possesses multiple features, including industry or application specific, let’s explore features commonly supported by most systems:

1. Data Acquisition: SCADA's data acquisition involves collecting real-time information from sensors and devices spread across industrial processes. This ensures a continuous inflow of accurate data essential for monitoring and controlling operations.
2. Data Communication: SCADA establishes communication links between various devices, such as sensors, PLCs, and the central server. This seamless data transmission allows for the timely exchange of information critical for decision-making.
3. Data Presentation: Through data presentation, SCADA offers visualizations of real-time processes and historical trends. This feature empowers operators with actionable insights, facilitating effective monitoring and informed decision-making.
4. Master Control: SCADA's master control feature enables remote operation, automation, and safety enforcement. This ensures efficient management of processes by allowing operators to control equipment remotely, automate tasks, and implement safety measures.

Let’s explore each SCADA feature to get an in-depth understanding of its functioning.

Data Acquisition

1. Sensor Integration: SCADA interfaces with various sensors, including flow sensors, level sensors, turbidity sensors, pH sensors, and pressure sensors. These sensors are strategically placed at different points in the treatment process to monitor parameters such as water flow rates, tank levels, water quality, and pressure variations.
2. Real-time Data Collection: SCADA ensures that data from sensors is collected in real-time. This instantaneous data capture allows for immediate awareness of any changes or anomalies occurring within the monitored processes.
3. Data Validation and Accuracy: The data collected by SCADA undergoes validation to ensure its accuracy. If data values suddenly deviate from expected ranges, the SCADA system can trigger alerts, notifying operators of potential issues or irregularities.

Data Communication

In the realm of industrial automation, data communication takes on a crucial role when integrated with SCADA (Supervisory Control and Data Acquisition) systems. This function facilitates the seamless exchange of data among various devices, allowing for efficient decision-making and process control.

1. Communication Protocols: SCADA communication protocols are essential for exchanging data and control information between the SCADA Master Station, field devices (RTUs or PLCs), and HMIs. These protocols define the rules and formats for data transmission, ensuring reliable and efficient communication within the SCADA system. Some of the common communication protocols used in SCADA systems include:
   • Modbus: Modbus is a widely used, open communication protocol that allows SCADA systems to communicate with various devices over serial or Ethernet connections. It is a simple, easy-to-implement protocol that supports both read and write operations for digital and analog signals. Modbus is often used in SCADA applications where the system needs to communicate with multiple devices, such as sensors, actuators, or other controllers.
   • DNP3 (Distributed Network Protocol): DNP3 is a communication protocol specifically designed for SCADA systems in the electric utility industry. It supports time-stamped data, unsolicited reporting, and secure authentication, making it suitable for applications that require high reliability and data integrity, such as power generation and distribution.
   • IEC 60870-5-101/104: IEC 60870-5-101/104 is a set of international standards for telecontrol equipment and systems used in SCADA systems. These standards define the communication protocols and data models for exchanging information between control centres, remote terminal units, and other devices in the electric utility industry.
   • OPC UA (Open Platform Communications Unified Architecture): OPC UA is a platform-independent, service-oriented communication protocol that enables secure and reliable data exchange between SCADA systems and various devices. It supports complex data types, advanced security features, and seamless integration with enterprise systems, making it suitable for modern industrial automation applications.
   • PROFIBUS DP/PA: PROFIBUS DP (Decentralized Peripherals) and PA (Process Automation) are communication protocols developed by Siemens for industrial automation systems. They support high-speed, deterministic data exchange between SCADA systems and field devices, such as sensors, actuators, and motor drives. PROFIBUS DP/PA is often used in applications that require precise synchronization and real-time communication, such as process control or motion control.
2. Remote Data Access: SCADA allows remote access to data, enabling authorized personnel to monitor and control processes from off-site locations. This capability is especially valuable for industries with distributed operations.
3. Data Integrity: SCADA systems ensure data integrity during transmission. Error-checking mechanisms within communication protocols detect and correct errors, ensuring that the received data is accurate and reliable.

Data Presentation

This feature transforms raw data into insightful visualizations that empower operators and decision-makers to grasp process dynamics and make informed choices.

1. Real-Time Visualizations: SCADA systems create real-time graphical representations of process parameters, such as temperature trends, pressure fluctuations, and equipment statuses. At the heart of this effective data presentation lies the Graphical User Interface (GUI). These visualizations provide immediate insights into ongoing operations and simplify the interpretation of intricate data, enabling operators to swiftly comprehend the current status of processes.
2. Historical Data Trending: SCADA enables the plotting of historical data trends over time. This allows operators to identify patterns, analyze variations, and optimize processes based on historical performance.
3. Alarms and Notifications: SCADA generates alarms and notifications when critical thresholds are breached. Operators receive immediate alerts on their interfaces, ensuring prompt responses to anomalies or emergencies.
4. Customizable Dashboards: SCADA systems offer customizable dashboards, allowing operators to tailor their views based on the parameters most relevant to their responsibilities.

Master Control

This crucial feature empowers operators and engineers to oversee, automate, and optimize complex processes for enhanced efficiency and safety.

1. Remote Operation: SCADA systems provide the capability to remotely control equipment and processes. Operators can start, stop, or adjust the parameters of machinery and devices from a central location.
2. Automated Logic: SCADA's master control feature executes predefined logic to automate sequences of operations. For example, it can coordinate the startup and shutdown of multiple machines in a specific order for optimal efficiency.
3. Safety Interlocks: SCADA enforces safety measures by implementing interlocks. These prevent simultaneous actions that could lead to hazards, such as ensuring that a valve is closed before activating a pump.
4. Process Optimization: SCADA systems enable operators to adjust parameters in real-time based on incoming data. For instance, they can fine-tune temperature and pressure settings to optimize energy usage and product quality.
